5/16″ Reversed Lip Screen Frame

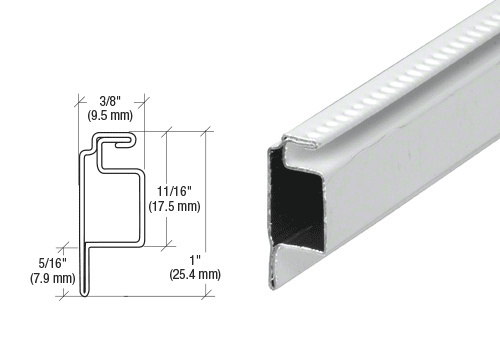

Product Overview Reversed Spline Pocket 020″ (.51 mm) Wall Thickness Matching Square Cut Plastic Lip Corners Available Our 5/16″ (7.9 mm) Reversed Lip Frame is made from roll formed aluminum and allows for inset mounting within the framed opening, resulting in less exposure to UV for longer spline life. Contoured flat inside edge adds strength. Spline pocket is on the opposite side of the spline groove. Frame is 3/8″ (10 mm) thick. SPECIFICATIONS: Material: Roll Formed Aluminum Wall Thickness: .020″ (.51 mm) Uses Spline Size: .140″ (3.6 mm) Uses Corners: WSC117 for Mitered Corners; SWSCL8 for Square Cut Corners Product Warning: Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting U S Chemical Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
