B5S Series Mill Aluminum 120″ Square Base Shoe Drilled for 1/2″ Glass

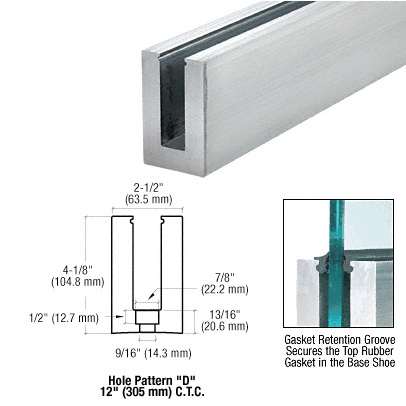

Product Overview For 1/2″ (12 mm) Monolithic Tempered Glass Typically Used as the Base Channel for Glass Railing Systems or Windscreens Drilled and Counter Bored 12″ (305 mm) Center-to-Center, or We Will Custom Drill to Your Specifications Custom Cutting and Mitering Service Test Reports Available Use Monolithic Tempered Glass CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3269 The CRL GRS™ B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. SPECIFICATIONS: Material: 6063 Aluminum Alloy T52 Temper Typical Use: Heavy-Duty Square Base Shoe used with 1/2″ (12 mm) glass as the base channel for glass railing systems. Also available counterbored and drilled. Product Warning: CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method. All pre-drilled CRL Base Shoes have a 1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate. Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
