Filter Drier flaring EK-164F 1/2

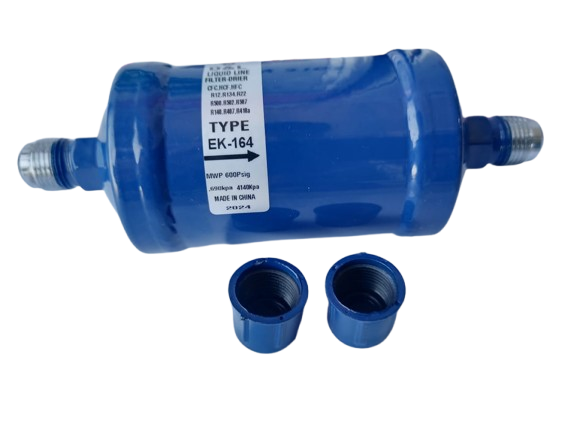

Filter Drier Flaring EK-164F 1/2″ The EK-164F is a 1/2″ SAE flaring liquid line filter drier designed for moisture, acid, and contaminant removal in refrigeration and air conditioning systems. Built with a solid core and 20-micron filtration, it offers dependable performance in demanding HVAC applications. Applications Commercial and residential HVAC systems Refrigeration units using CFC, HCFC, and HFC refrigerants Heat pump systems and split AC systems Ideal for system maintenance or compressor replacement Features 16 cu. in. desiccant volume for extended protection 20-micron filtration for effective contaminant removal Solid core with high moisture and acid absorption Epoxy-coated steel shell for corrosion resistance Compatible with POE oils and multiple refrigerants Specifications Parameter Details Model EK-164F Connection Type SAE Flare Connection Size 1/2 inch Desiccant Volume 16 cubic inches Filtration 20 microns Refrigerant Compatibility CFC, HCFC, HFC (R-22, R-134a, R-404A, R-410A, etc.) Max Working Pressure 680 psig (46.9 bar) Shell Material Epoxy-coated steel Oil Compatibility POE oils Questions Q1: Can EK-164F be installed in both horizontal and vertical positions?Q2: What is the recommended time to replace the EK-164F filter drier during system maintenance?
