Filter Drier flaring EK 032F

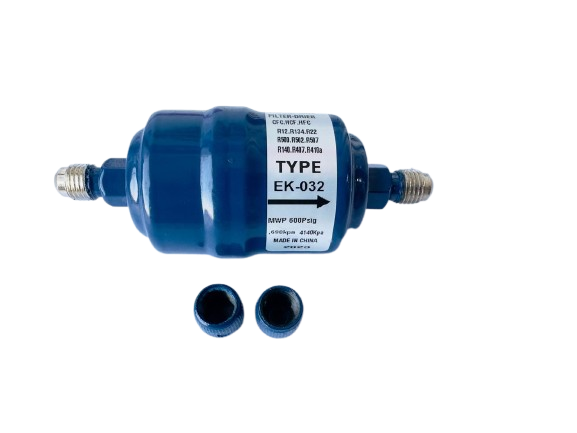

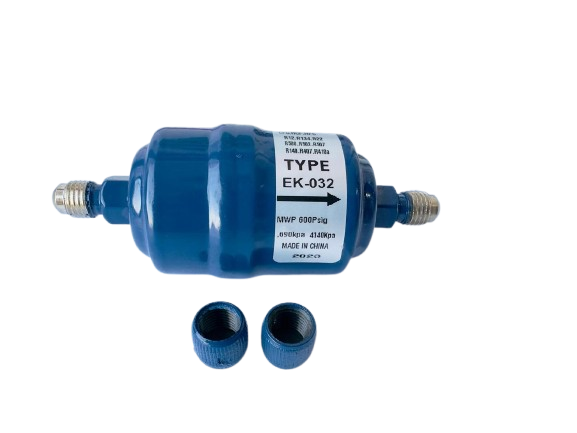

Filter Drier Flaring EK 032F The EK 032F is a high-efficiency filter drier with flaring connection, designed specifically for refrigeration and air conditioning systems. It plays a vital role in ensuring system reliability by removing moisture, acid, and solid particles from refrigerants and oils. With a compact design and proven filtering performance, the EK 032F is ideal for both residential and commercial HVAC systems. Applications Refrigeration and air conditioning systems using CFC, HCFC, and HFC refrigerants Domestic and light commercial units Heat pump systems After component replacements or major repairs Ideal for use in service and OEM applications Key Features Solid core with high moisture and acid absorption capacity Flaring connection for easy installation and replacement Compact and robust design for space-constrained systems Low pressure drop ensures energy-efficient operation Compatible with a wide range of refrigerants and oils Corrosion-resistant coating for extended service life Specifications Parameter Details Model EK 032F Connection Type Flaring Connection Size 1/4 inch Refrigerant Compatibility CFC, HCFC, HFC (R22, R134a, R404A, etc.) Filtration 20 microns Desiccant Type 100% Molecular Sieve Moisture Removal High Capacity Pressure Drop Low Max Operating Pressure 46 bar (667 psi) Flow Direction Bi-directional Temperature Range -40°C to 70°C Frequently Asked Questions Q1: Can the EK 032F be used with R410A refrigerant?A1: No, the EK 032F is not recommended for R410A systems due to pressure limitations. Consider using a high-pressure-rated drier for R410A. Q2: How often should the filter drier be replaced?A2: It’s best to replace the filter drier whenever the refrigeration system is opened for service, such as during compressor replacement or after a leak repair.
