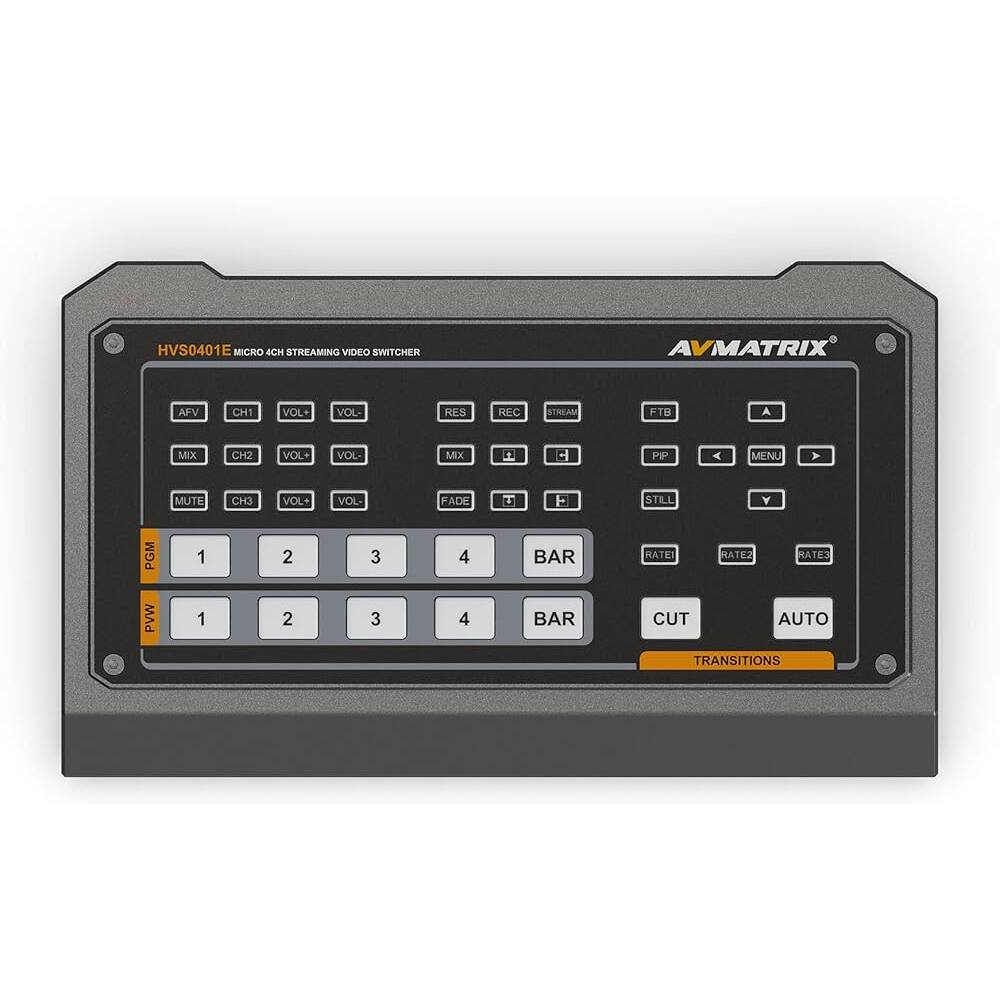

AVMATRIX HVS0401E 4-Ch HDMI Multi-format Streaming Video Switcher

The AVMATRIX HVS0401E is a compact video switcher that handles one DisplayPort and four HDMI inputs with up to 1080p60 video quality. It supports RTMP streaming via LAN for platforms like YouTube and Twitch, and offers USB capture and recording capabilities. Control options include push buttons, a T-bar, or web interface. The switcher features multiple inputs, outputs, and audio ports, making it ideal for versatile video production and streaming. Versatile Control and Input Options Control the switcher with push buttons, a T-bar, or via a web interface using its IP address. The switcher supports one DisplayPort and four HDMI inputs, with outputs for HDMI program feeds, multiview, and audio mixing, offering extensive flexibility for video production and live streaming. Live Streaming and USB Capture The HVS0401E features RTMP streaming via its LAN port, supporting platforms such as YouTube and Twitch. It also includes a USB-C port for direct video capture to a computer using software like OBS and a USB-A port for recording the program feed at up to 1080p60, with support for H.264/H.265 encoding in MP4/TS formats. Main Features Supports one DisplayPort and four HDMI inputs. Provides dual HDMI program outputs, one HDMI multiview output, and USB-C for video capture. RTMP streaming capability via the LAN port, compatible with platforms like YouTube, Skype, Facebook, and Twitch. Built-in USB-C port for video capture to a computer with software like OBS. USB-A port for recording program feed at up to 1080p60 with bitrates up to 32Mb/s, encoded in H.264/H.265 formats. Control via push buttons, T-bar, or web page interface using IP address. Includes features such as audio mixing, PiP (Picture-in-Picture), and adjustable PiP size and positioning. Supports up to 1080p60 video input and output with embedded audio. Features a built-in audio mixer with two analog stereo 3.5mm mic/line inputs and outputs. Includes Tally output, Fade to Black (FTB), and image still capabilities. Compact design suitable for various video production and live streaming setups. Processing Switching Type: Pushbutton, Software, T-Bar Processing Resolution: 1080p at 23.98/24/25/29.97/30/50/59.94/60 Color Processing: RGB / YCbCr Input Video Inputs: 4x HDMI Female 1x DisplayPort Female Input Video Format: HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/50/59.94/60 fps 576p at 50 fps 576i / 625 lines at 50 fps 480p at 59.94/60 fps 480i / 525 lines at 59.94/60 fps Audio Inputs 2x 1/8″ / 3.5 mm TRS Stereo Analog Female 1x 2RCA Stereo Analog Input Audio Format: Analog Output Video Outputs: 2x HDMI Female (Program) 1x HDMI Female (Monitor) 1x USB-C (USB Video) Female Output Video Format: HDMI 1080p at 24/25/30/50/60 fps 1080i at 50/60 fps USB-C 1080p at 60 fps Audio Outputs: 1x 1/8″ / 3.5 mm TRS Stereo Analog Female (Loop Output) Connectivity Other I/O: 1x RJ45 LAN Input/Output 1x DE-15/DB-15 Tally Input HDCP Support: No Wi-Fi: No Bluetooth: No Power Power I/O: 1x Barrel (12 VDC at 1.2 A) Input Power Consumption: Device: 14.4 W Environmental Operating Temperature: 12 to 92°F / -20 to 60°C Storage Temperature: -22 to 158°F / -30 to 70°C Physical Dimensions: 9.4 x 5.5 x 1.7″ / 23.8 x 14 x 4.4 cm Weight: 2.1 lb / 968.3 g
