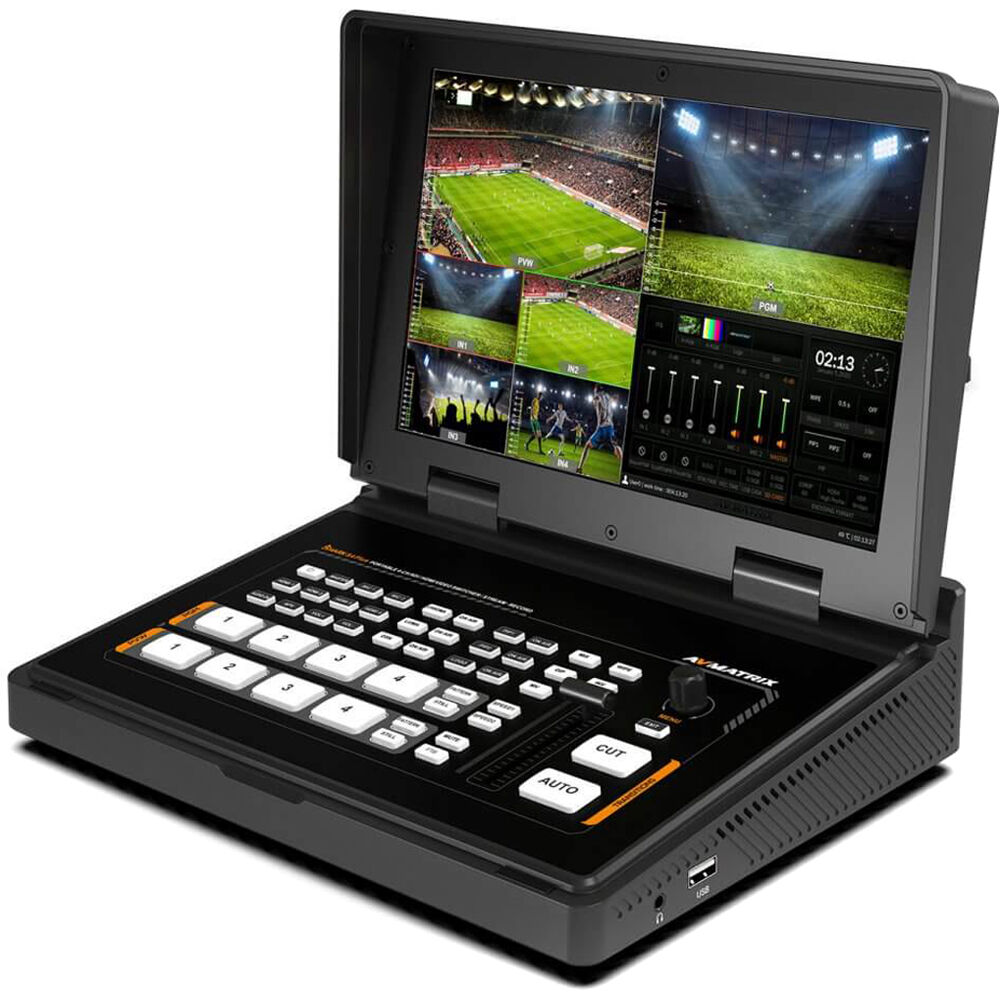

AVMATRIX Shark S4 Plus Portable 4-Ch HDMI /SDI Multi-format Streaming Video Switcher

AVMATRIX Portable 4-Ch HDMI Multi-format Streaming Video Switcher 10.1 inch FHD IPS LCD display 2×HDMI & 2×3G-SDI inputs, support auto-detected 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output RTMP/SRT stream & USB disk/ SD card record AUX output configurable and assignable USB for capturing and streaming on PC Upstream key: Luma key, Chroma key, PIP×2/ POP Downstream key and LOGO overlay T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3patterns) / MIX/ DIP Audio mixer: 2×HDMI, 2×SDI embedded audio and 2-Ch MIC/line in; audio delay available Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators Customer configuration import andexport FTB/ MUTE/ STILL/ GPIO for tally Connnection: Display: 10.01 inch IPS FHD Video Input: 2x HDMI, 2x SDI Video Output: 2×HDMI PGM, 1x HDMI Multiview, 1xUSB type C, 1x LAN Stream and Record: Audio Inputs: MIC/Line x 2(3.5 mm stereo audio) Audio Outputs: Earphone slot x 1(3.5 mm stereo audio) Encoding Bitrate: 2/4/8/12/16/24/32 Mbps, Support CBR/ VBR Stream Protocols: RTMP/ RTMPS/ SRT Storage Format: USB/ SD card, Support FAT32/exFAT/NTFS Record File Format: MP4, TS Record File Segment: 1/5/10/20/30/60/90/120 mins Function:  Transitions: T- Bar/ AUTO/ CUT Effects: WIPE (11 x 3 patterns)/ MIX/ DIP/ STILL (freeze)/ PATTERN/ MUTE/ FTB Layouts: 2 styles of Multiview layout (Landscape and Portrait) Keys: Upstream Key: Luma Key x 1/ Chroma Key x 1/PIP x 2/ POP Downstream Key: DSK x 1/Logo x 1 Media Format: Default Image: 39 preset patterns Local Image: Up to 16 imported images Capture Image: Up to 16 captured images Generators: Pattern Generator x 1, Color Generators x 2 Audio Mixer: Video Input x 4 and MIC/Line x 2 Audio Delay: 0-500 ms Standard: Input Format Support: Multi-format Auto Signal Detection, Up to 1080p 60 Color Space: HDMI: RGB/ YUV, SDI: YUV HDMI PGM/MV Out: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 USB Capture Out: Up to 1080p60
